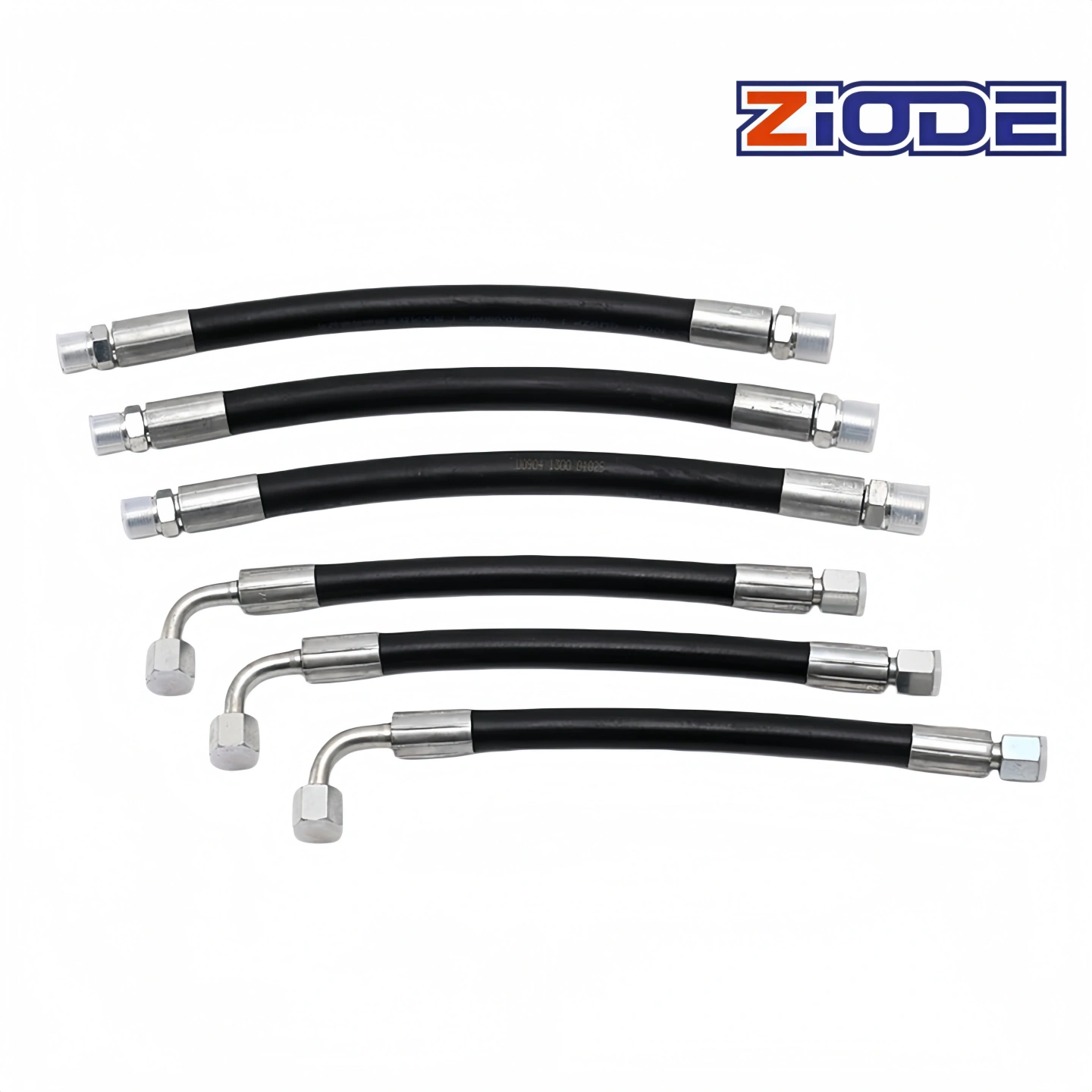

High Quality Hydraulic Hose Assembly
| Brand: | ZIODE |
| Product Name: | 1/4" Hydraulic Hose Assembly |
| Size: | 1/4 inch (6.35 mm) |
| Material: | High-quality synthetic rubber hose with steel wire reinforcement; corrosion-resistant metal fittings |
| Pressure Rating: | Suitable for medium to high-pressure hydraulic systems (depends on hose type) |
| Temperature Range: | Typically -40°C to +100°C (varies by material) |
| Flexibility: | High flexibility for installation in tight or curved spaces |
| End Fittings: | Crimped metal fittings; customizable types (JIC, NPT, BSP, ORFS, etc.) |
| Applications: | Industrial machinery, automotive, agriculture, construction equipment, marine, aerospace |
| Durability: | Resistant to abrasion, pressure, and temperature variations |
| Customization: | Hose length, fitting type, and assembly configuration can be tailored |
| Quality Control: | Pressure test, burst test, ultrasonic inspection for safety and reliability |
| Advantages: | Robust, flexible, cost-effective, and easy to install |
Hydraulic hose assemblies are suitable for various engineering machinery hydraulic systems, including high, medium, and low-pressure applications. They offer high reliability, easy installation, and excellent resistance to high pressure and impact, making them versatile in use.
ZIODE hydraulic hose assemblies are made with world-class hose brands and feature a full range of fittings in compliance with DIN and SAE standards. We also support non-standard custom assemblies and other types of fittings to meet extreme operating conditions, with options for low-temperature resistant, high-temperature resistant, and ultra-flexible specialized assemblies.

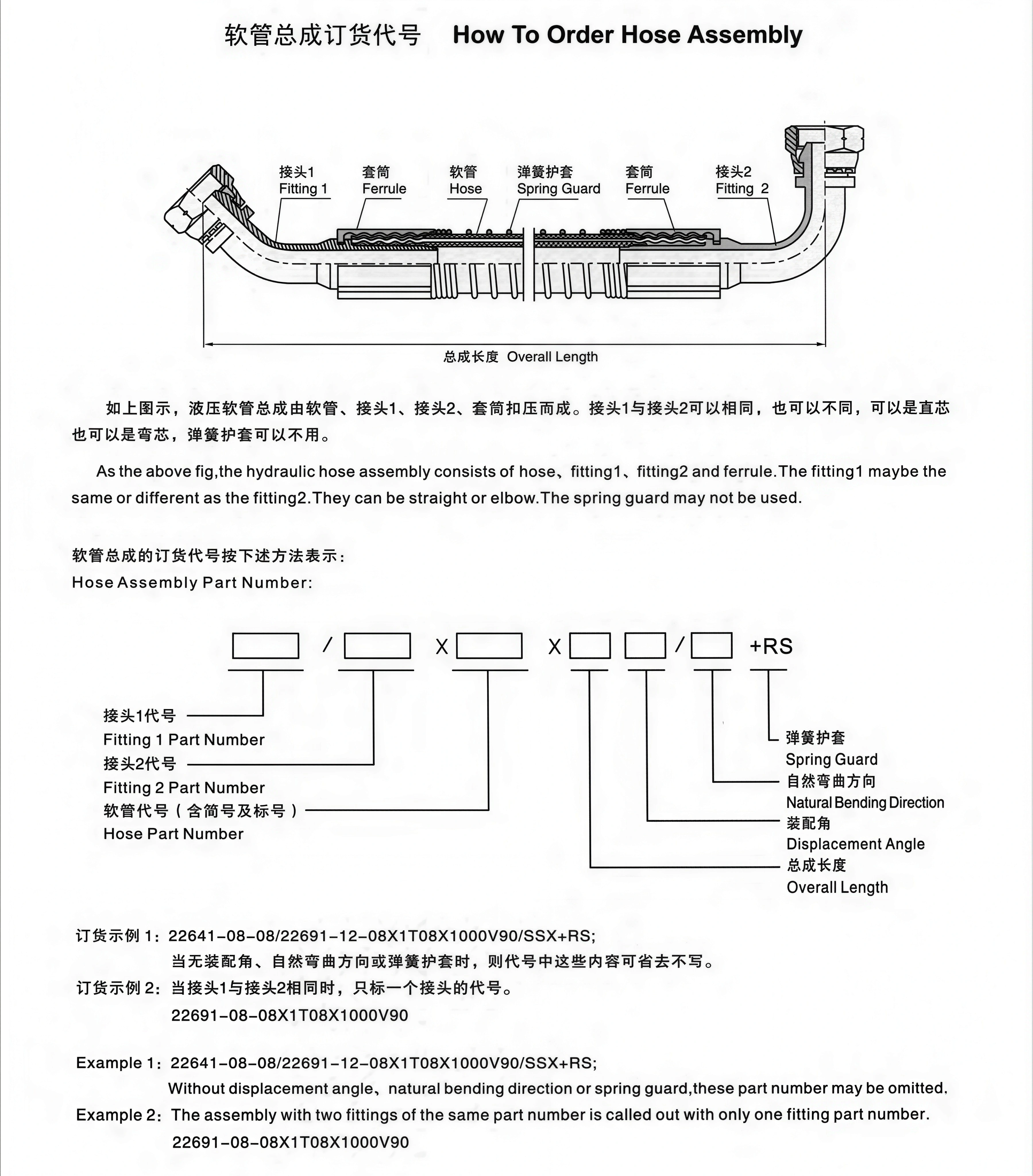

How To Order Hose Assembly?
ZIODE’s hydraulic hoses can be custom-assembled to your specifications with all fittings included.
Simply choose your hose type, length, and end fittings, and we’ll make it for you. These reinforced hoses transfer fluids safely in industrial, marine, automotive, mining, and manufacturing systems.equipment.

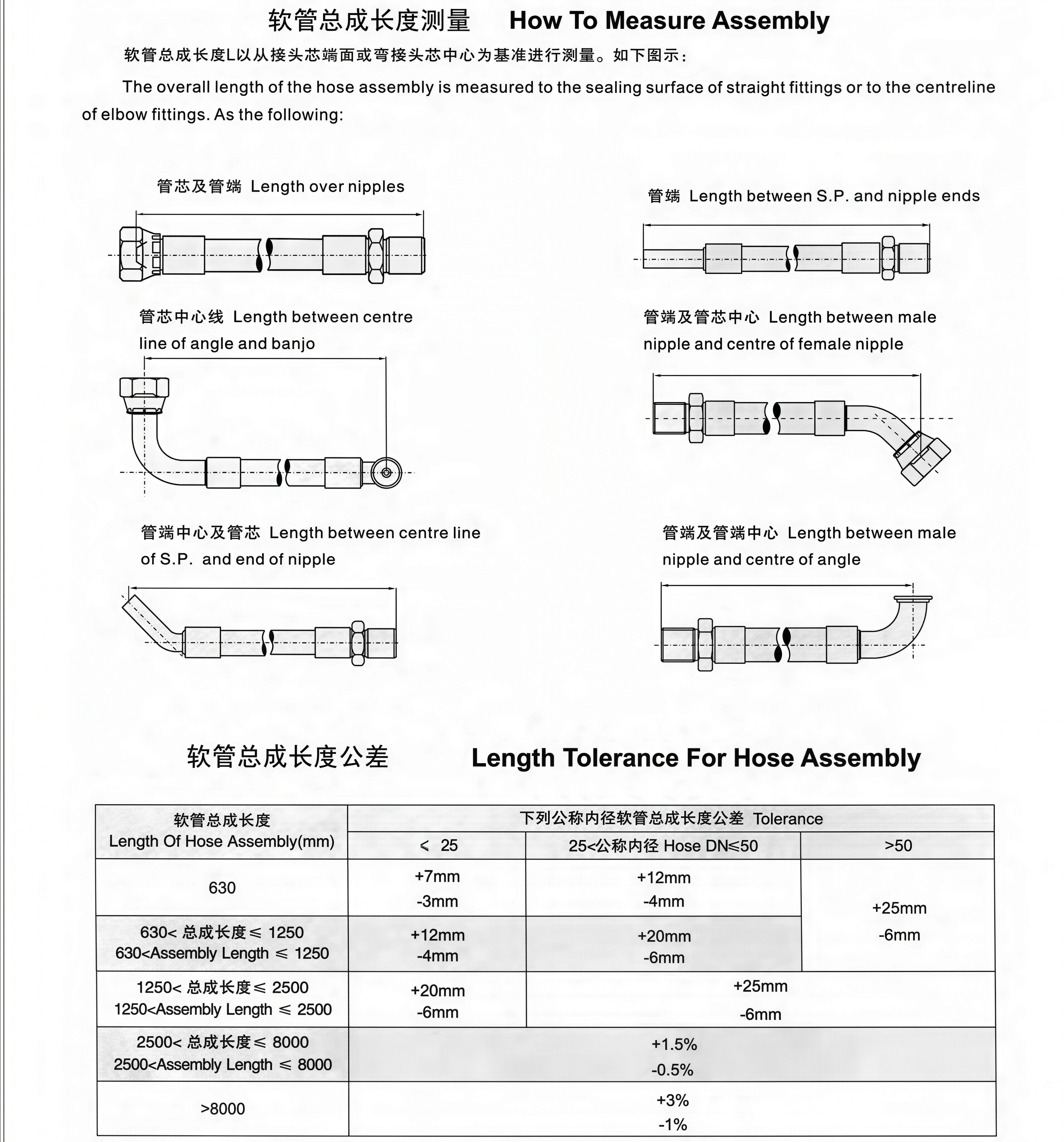

How to Measure Your Custom Hose Assembly
The overalllength of the hose assembly is measured to the sealing surface of straight fiings or to the centreline of elbow fittings. As the following:

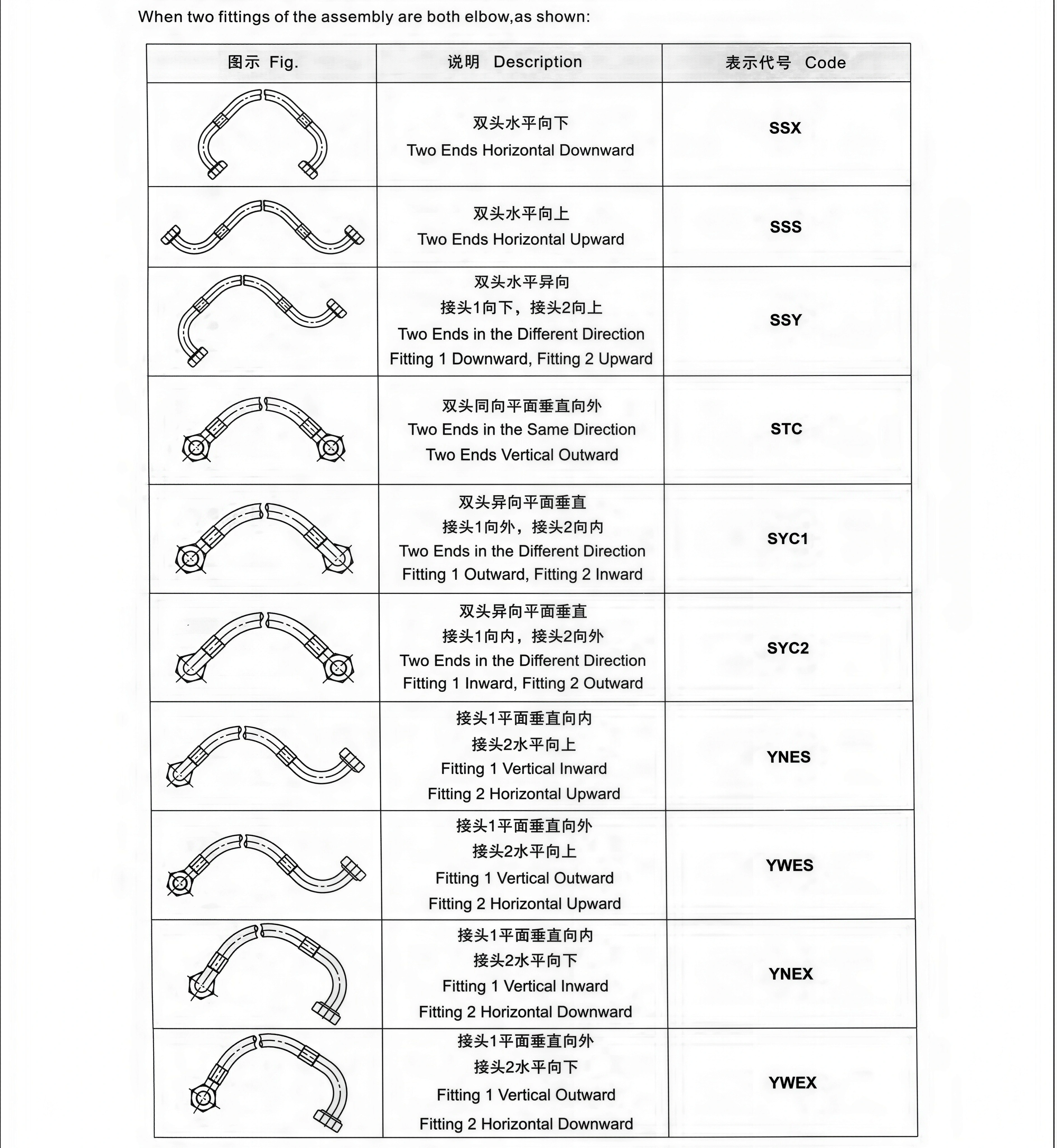

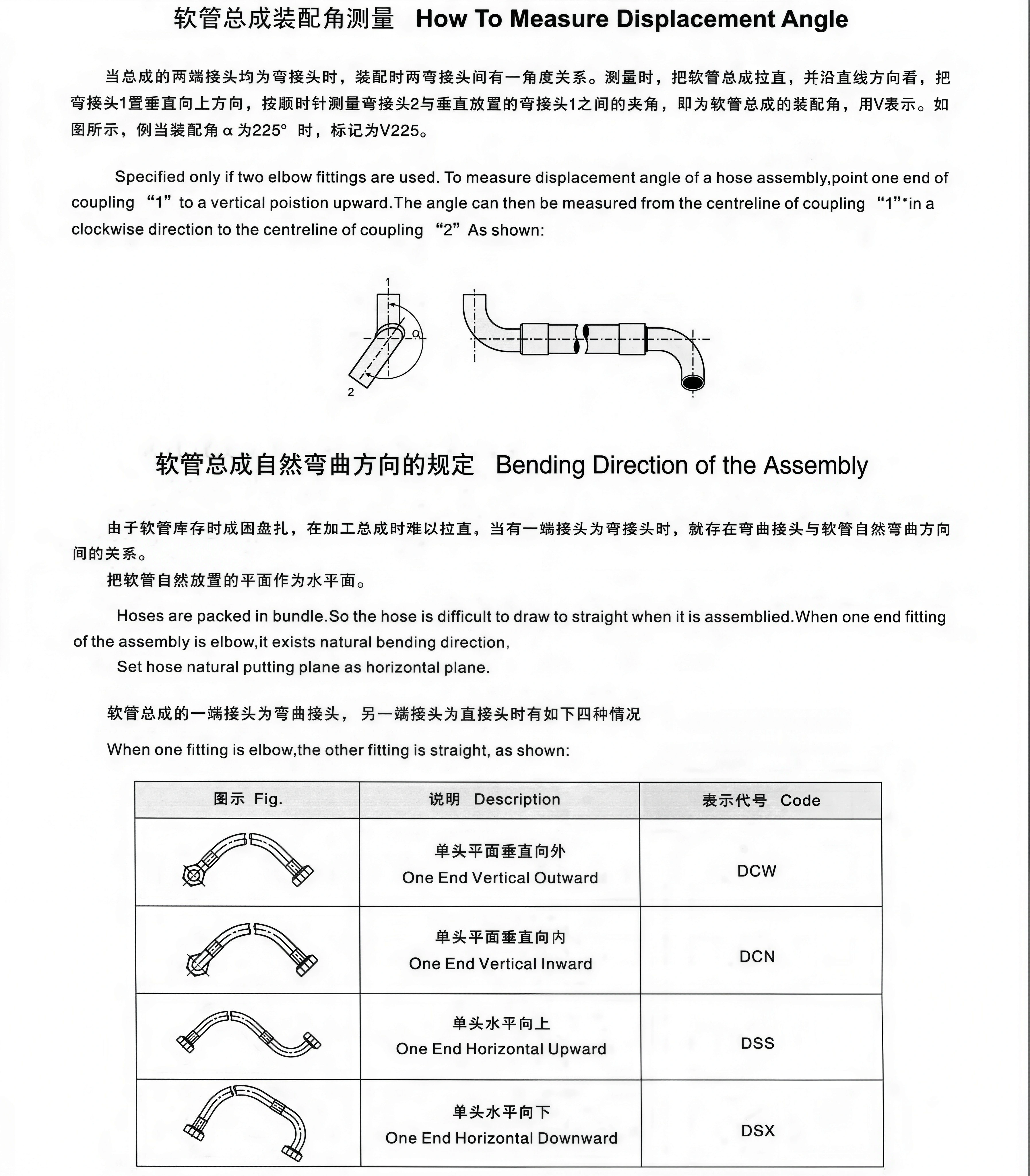

How to Measure Displacement Angle
Specified only if two elbow fitings are used. To measure displacement angle of a hose assembly,point one end ofcoupling "1" to a vertical poistion upward. The angle can then be measured from the centreline of coupling "1"in aclockwise direction to the centreline of coupling "2" As shown:
-
01High Pressure and Temperature Resistance
Suitable for demanding industrial environments.
-
02Flexibility
Designed to bend and curve without kinking, allowing installation in tight spaces.
-
03Durable Construction
Reinforced hoses and corrosion-resistant fittings ensure long service life.
-
04Customizable
Hose length, diameter, and fittings can be tailored to specific hydraulic systems.
-
05Leak-Free Operation
Precision crimping and high-quality materials prevent fluid leakage.
-
06Versatile Applications
Compatible with hydraulic oils, water-based fluids, and certain chemicals.
-
06Easy Maintenance
Quick disconnect fittings and proper installation practices facilitate field repairs and replacements.
Hydraulic hose assemblies are widely applied across multiple industries:
-
Mining: Earthmoving equipment, drills, trucks, and continuous miners.
-
Construction: Excavators, cranes, loaders, and material-handling machinery.
-
Manufacturing: Assembly lines, robotics, automotive production, food processing, and industrial automation.
-
Automotive: Hydraulic systems for pumps, brakes, and vehicle maintenance equipment.
-
Agriculture: Tractors, harvesters, irrigation machinery, and other crop-handling equipment.
-
General Industrial Use: Any system requiring fluid power transfer with high pressure, temperature, and reliability requirements.
Installation and Safety Guidelines
Leave sufficient slack during installation to prevent stress during operation.
Avoid twists and sharp bends to reduce the risk of hose damage.
Use adapters, brackets, and protective sleeves to prevent exposure to heat, abrasion, or environmental hazards.
Select hoses with appropriate pressure ratings, temperature ranges, and fluid compatibility for optimal performance and safety.
