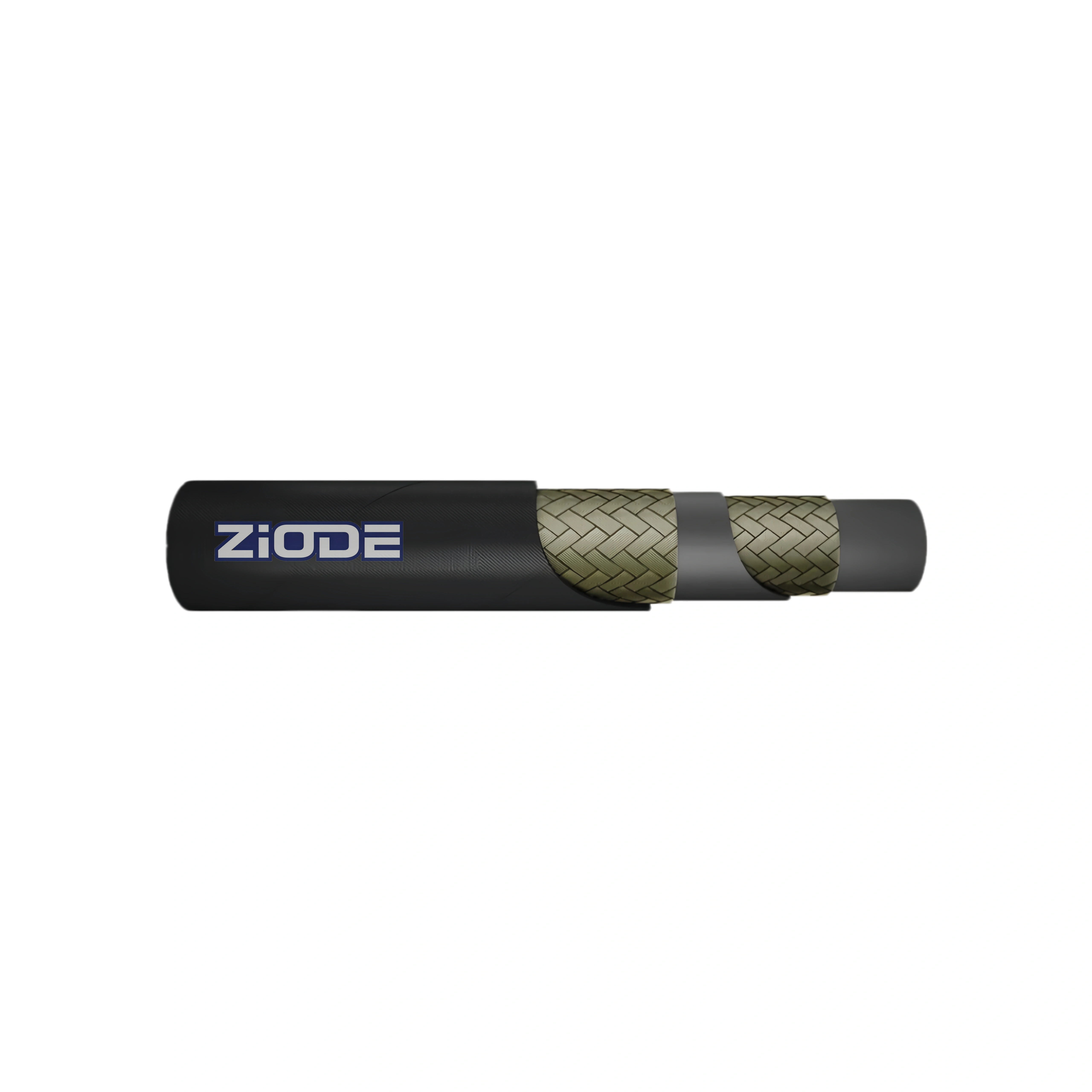

High-Pressure Double Steel Wire Braided Hydraulic Hose
It is specifically engineered for conveying petroleum-based and water-based hydraulic fluids, featuring excellent oil resistance, pressure resistance, and durability under harsh working conditions. The hose meets or exceeds international standards such as SAE 100 R2AT, EN 853 2SN, and DIN 20022 2SN.
| Brand: | ZIODE |
| Inner Tube: Tube: | Oil resistant synthetic rubber |
| Reinforcement: | Two high tensile steel wire braids |
| Cover: | Oil and weather resistant synthetic rubber |
| Surface: | Wrapped surface and smooth surface are available |
| Temperature: | -40℃ to +100℃, intermittent 120°C（-104℉ to +212℉） |
| Working Pressure: | 80 – 420 Bar / 1200 – 6000 Psi. |
| Standard: | SAE 100R2AT; EN 853 2SN; DIN 20022 2SN - SAE J1942; SAE 100R2AT; EN 853 2SN; DIN 20022 2SN - SAE J1942 |
-
01High Pressure Resistance
Double high-tensile steel wire braids ensure excellent strength and stability under high pressure.
-
02Superior Oil Resistance
NBR inner tube provides outstanding resistance to petroleum-based fluids and reduces permeation.
-
03Long Service Life
Resistant to abrasion, ozone, weather, aging, and corrosion.
-
04Stable Performance
Effectively absorbs vibration and suppresses pressure fluctuations in hydraulic systems.
-
05Wide Compatibility
Compatible with crimp fittings, field-attachable fittings, and various connection standards.
-
06Flexible Installation
Good bending performance allows easy routing and installation in complex environments.
-
07No Skiving Required
Simplifies assembly process, improves efficiency, and reduces labor costs.
-
Industrial Machinery: High-pressure hydraulic systems, presses, machine tools, and heavy-duty conveying systems.
-
Construction Equipment: Excavators, loaders, cranes, and other high-load, high-pressure equipment.
-
Agricultural Machinery: Tractors, harvesters, and hydraulic implements operating under demanding conditions.
-
Mining & Oilfield Equipment: Mining machinery, drilling rigs, and oilfield hydraulic systems.
-
Transportation Equipment: Dump trucks, heavy vehicles, and mobile hydraulic equipment.
-
General Hydraulic Systems: Suitable for conveying high-pressure petroleum-based and water-based hydraulic fluids, as well as lubricating oils.
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | Inside (mm) | Braid (mm) | Outside (mm) | Working Pressure | Burst Pressure | Bend Radius | Weight | Length | |||||||
| DN | inch | mm | Dash | Min | Max | Min | Max | Max | Bar | Psi | Bar | Psi | mm | kg/m | M |
| 5 | 3/16″ | 4.8 | -3 | 4.6 | 5.4 | 10.6 | 11.6 | 13 | 420 | 6000 | 1680 | 24000 | 90 | 0.28 | 50/100 |
| 6 | 1/4″ | 6.4 | -4 | 6.2 | 7 | 12.1 | 13.3 | 14.2 | 400 | 5850 | 1600 | 23200 | 100 | 0.33 | 50/100 |
| 8 | 5/16″ | 7.9 | -5 | 7.7 | 8.5 | 13.7 | 14.9 | 15.8 | 350 | 5000 | 1400 | 20000 | 115 | 0.36 | 50/100 |
| 10 | 3/8″ | 9.5 | -6 | 9.3 | 10.1 | 16.1 | 17.3 | 18.2 | 330 | 4800 | 1320 | 19200 | 125 | 0.46 | 50/100 |
| 13 | 1/2″ | 12.7 | -8 | 12.3 | 13.5 | 19 | 20.6 | 21.3 | 275 | 4000 | 1100 | 16000 | 175 | 0.53 | 50/100 |
| 16 | 5/8″ | 15.9 | -10 | 15.5 | 16.7 | 22.2 | 23.8 | 24.5 | 250 | 3630 | 1000 | 14500 | 200 | 0.67 | 50 |
| 19 | 3/4″ | 19 | -12 | 18.6 | 19.8 | 26.2 | 27.8 | 28.6 | 215 | 3120 | 850 | 12500 | 240 | 0.9 | 50 |
| 25 | 1″ | 25.4 | -16 | 25 | 26.4 | 34.1 | 35.7 | 36.6 | 165 | 2400 | 660 | 9600 | 300 | 1.25 | 50 |
| 32 | 1-1/4″ | 31.8 | -20 | 31.4 | 33 | 43.3 | 45.7 | 46.4 | 125 | 1820 | 500 | 7280 | 420 | 1.85 | 40 |
| 38 | 1-1/2″ | 38.1 | -24 | 37.7 | 39.3 | 49.6 | 52 | 52.8 | 90 | 1310 | 360 | 5240 | 500 | 2.09 | 40 |
| 51 | 2″ | 50.8 | -32 | 50.4 | 52 | 62.3 | 64.7 | 65.6 | 80 | 1200 | 320 | 4640 | 630 | 2.75 | 40 |
