SAE 100 R8 Thermoplastic Hydraulic Hose

SAE 100 R8 is a high-pressure thermoplastic hydraulic hose engineered for conveying synthetic, petroleum-based, and water-based hydraulic fluids. Constructed with a thermoplastic inner tube, dual high-tensile fiber reinforcement, and a durable outer cover, it offers excellent strength, flexibility, and long service life.
CONTACT US

ZIODE provides a full range of R8 reinforcement options:

1. Two braids high tensile synthetic fiber.

2. One or two layers braided aramid fibre.

3. One or Two Layers Braided Steel Wire.

4. Twin Hose: One or two layers braided aramid fibres

5. Twin Hose: One or Two Layers Braided Steel Wire.

All types feature a thermoplastic inner tube resistant to oils and chemicals, and a durable outer thermoplastic cover resistant to abrasion, weather, and hydraulic fluids.

Brand: ZIODE
Internal Hose: -Oil-resistant synthetic thermoplastic core tube (Nylon).
Common Reinforcement: Two braids high tensile synthetic fiber.
Cover: High quality wear-resistant thermoplastic. (Black, oil and abrasion-resistant PU; Orange non-conductive, oil and abrasion-resistant PU)
Temperature: -40℃ to +100℃.( -40°F to +212°F)
Working Pressure: 140 – 362 Bar /2030 – 5249 Psi.
Standard: SAE 100 R8 / EN855-R8
  • 01

    Medium-pressure, non-conductive, and flexible

  • 02
    Multiple reinforcement options

    fiber, steel wire, single or twin-line

  • 03

    Resistant to oil, abrasion, weathering, and hydraulic fluids

  • 04

    High chemical compatibility and long service life

  • 05

    MSHA-approved for safety

  • Construction & Agricultural Machinery: Excavators, loaders, tractors, harvesters

  • Industrial & Mobile Hydraulic Systems: Hydraulic oil, lubrication, and pneumatic lines

  • Vehicle & Equipment: Forklifts, aerial platforms, scissor lifts, cranes

  • Specialized Use: Non-conductive environments, medium-pressure gases, and solvents

  • Industries: Automotive, shipbuilding, aerospace, industrial machinery

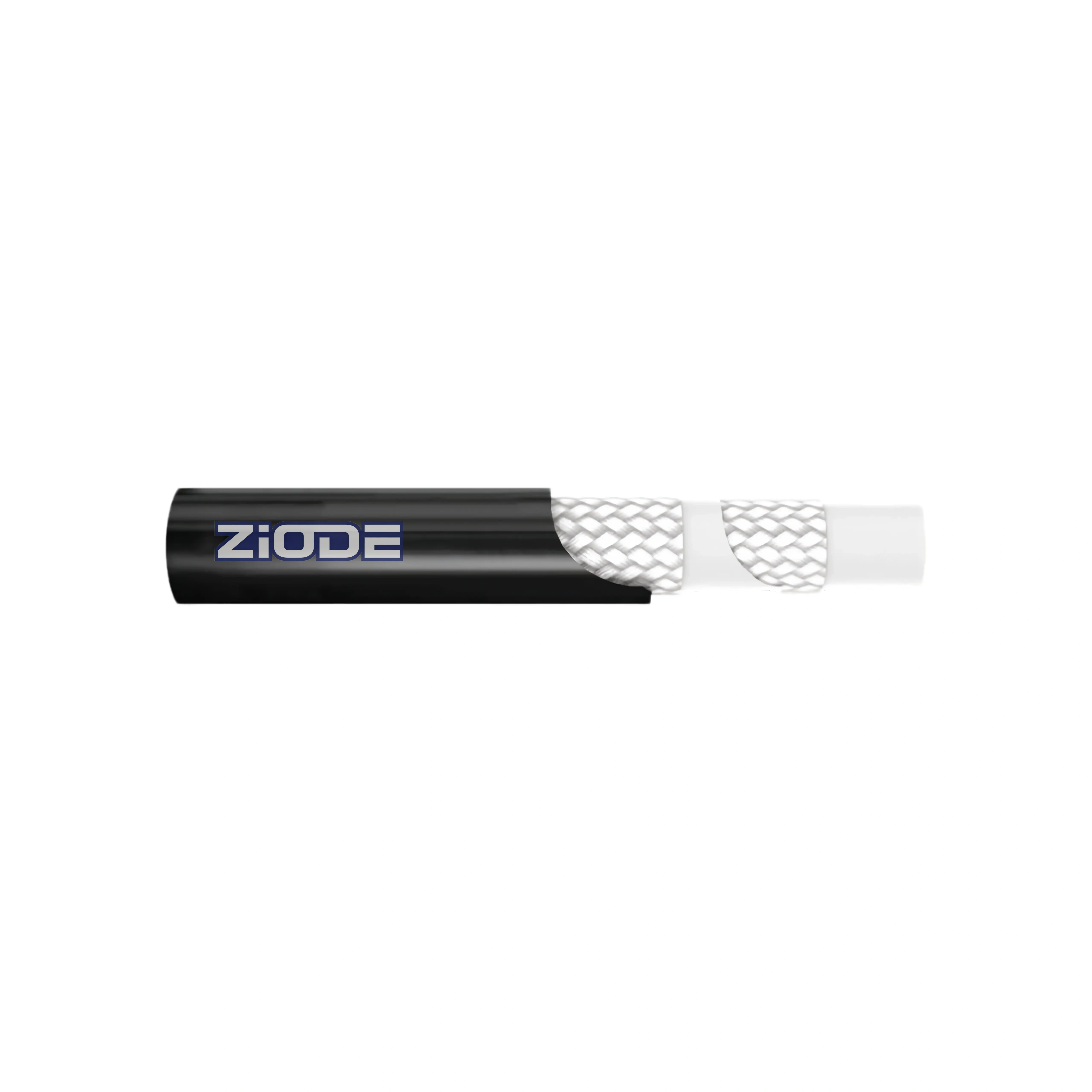

Two braids high tensile synthetic fiber Thermoplastic Hose
Size Inside Outside Working Pressure Burst Pressure Bend Radius Weight Length
DN inch mm Dash mm mm Bar Psi Bar Psi mm kg/m M
5 3/16” 4.8 -3 4.8 10 362 5249 1450 21025 22 0.06 50/100
6 1/4” 6.4 -4 6.4 12.2 350 5000 1400 20000 50 0.06 50/100
8 5/16” 8 -5 8 14.2 300 4300 1200 17450 55 0.1 50/100
10 3/8″ 9.6 -6 9.6 16 280 4000 1120 16000 60 0.14 50/100
13 1/2″ 12.7 -7 12.7 19.5 245 3500 980 14000 80 0.24 50/100
16 5/8″ 16 -10 16 23.1 200 2900 800 11600 130 0.29 50/100
19 3/4″ 19 -12 19 26.4 162 2349 650 9425 150 0.35 50/100
25 1″ 25.4 -16 25.4 33.3 140 2030 560 8120 190 0.51 50/100

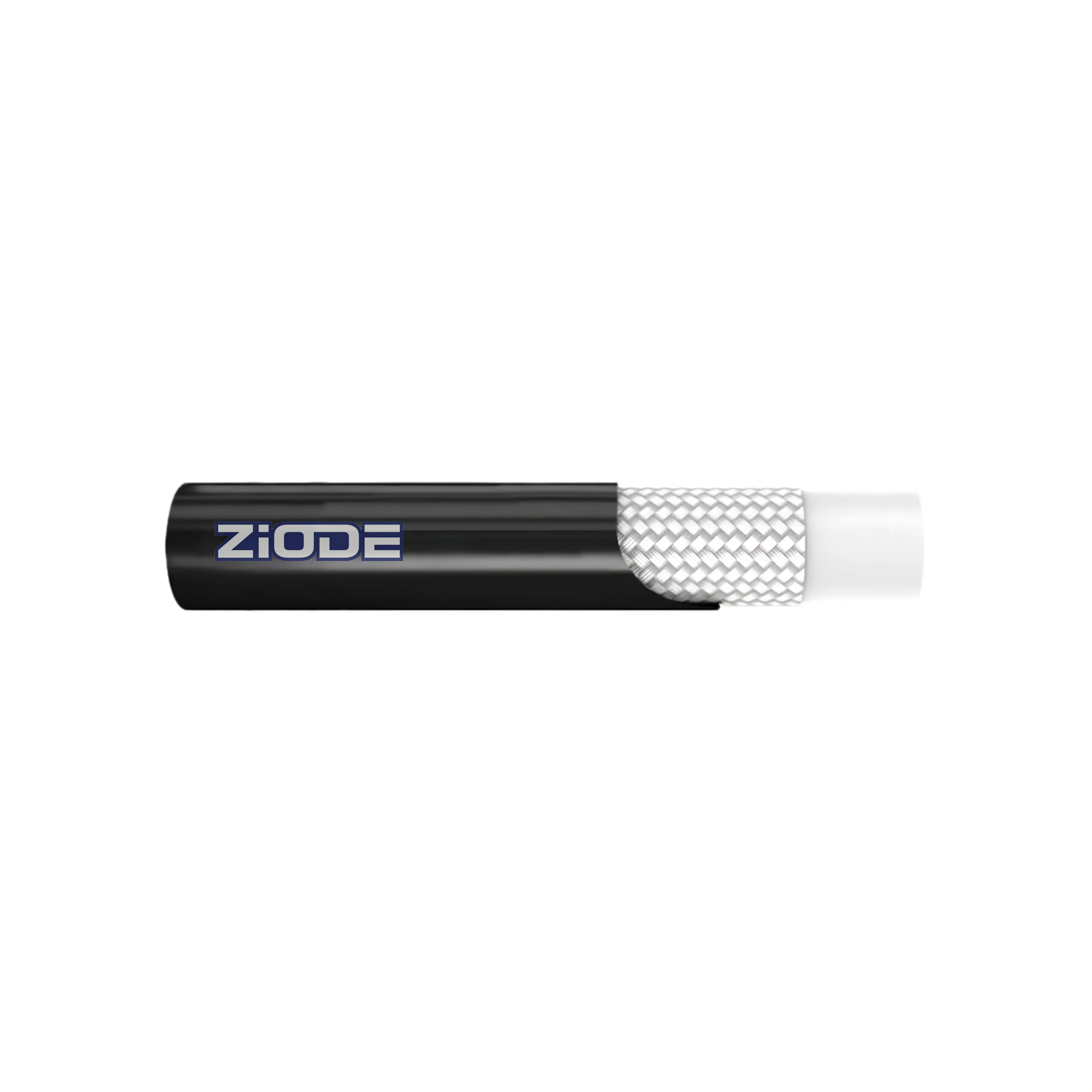

One or two layers braided aramid fibres Thermoplastic Hose
Size Inside Outside Working Pressure Burst Pressure Bend Radius Weight Length
DN inch mm Dash mm mm Bar Psi Bar Psi mm kg/m M
5 3/16” 5 -3 5 10 362 5249 1450 21025 22 0.08 50/100
6 1/4” 6.3 -4 6.3 12.2 362 5249 1450 21025 30 0.11 50/100
8 5/16” 8 -5 8 14.2 350 5075 1400 20300 40 0.14 50/100
10 3/8″ 10 -6 10 16 300 4350 1200 17400 70 0.17 50/100
13 1/2″ 13 -7 13 19.5 250 3625 1000 14500 90 0.24 50/100
16 5/8″ 16.4 -10 16.4 23.1 200 2900 800 11600 130 0.29 50/100
19 3/4″ 19.5 -12 19.5 26.4 162 2349 650 9425 150 0.35 50/100
25 1″ 25.4 -16 25.4 33.3 140 2030 560 8120 190 0.51 50/100

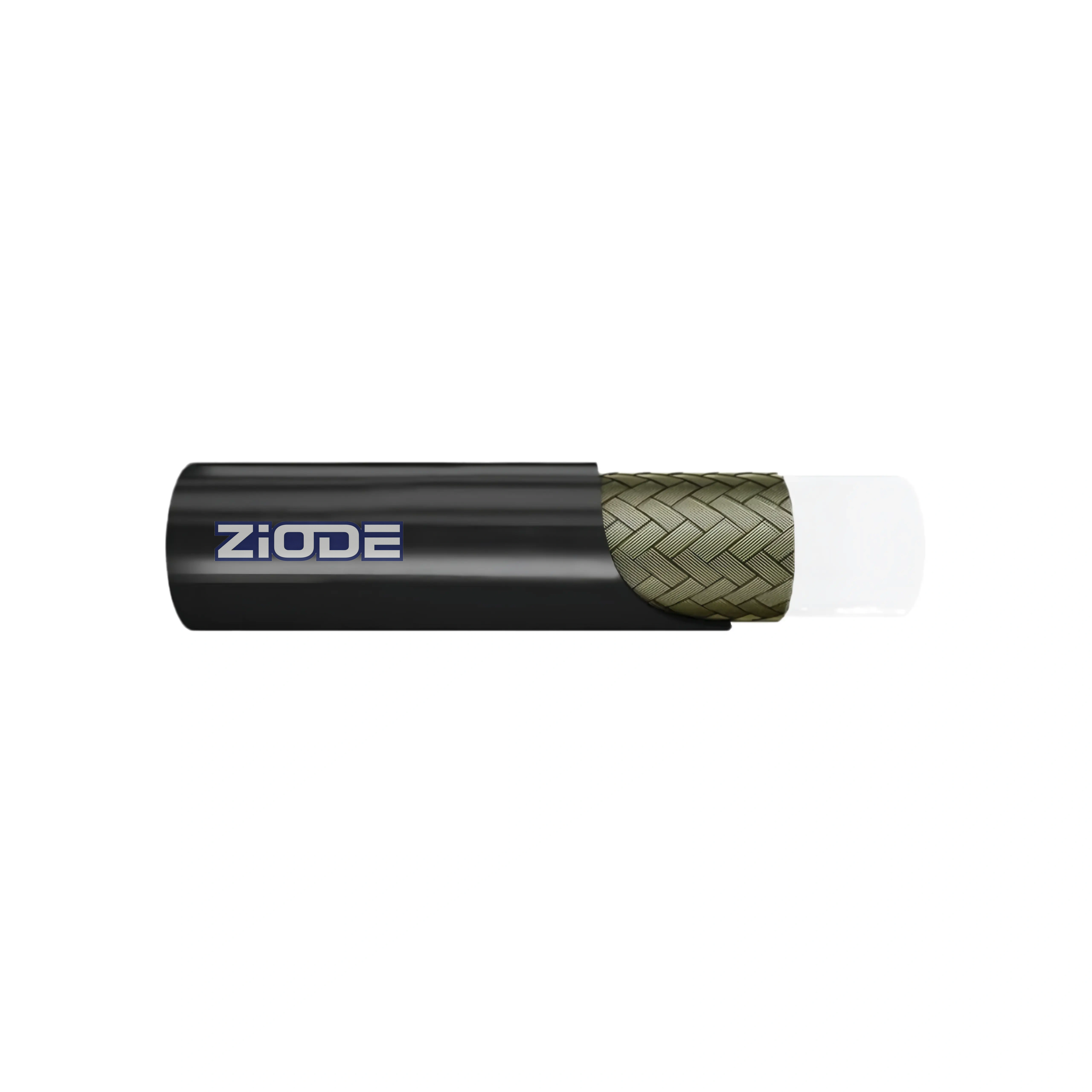

One or Two Layers Braided Steel Wire Thermoplastic Hose
Size Inside Outside Working Pressure Burst Pressure Bend Radius Weight Length
DN inch mm Dash mm mm Bar Psi Bar Psi mm kg/m M
6 1/4” 6.3 -4 6.3 13.2 450 6525 1800 25920 40 0.26 50/100
8 5/16” 8 -5 8 15.2 400 5800 1600 23200 50 0.32 50/100
10 3/8″ 9.7 -6 10 17.5 380 5510 1520 22040 80 0.38 50/100
13 1/2″ 13 -7 13 21.5 300 4350 1200 17400 90 0.48 50/100
16 5/8″ 16.4 -10 16.4 24.5 180 2610 720 10440 100 0.61 50/100
19 3/4″ 19.5 -12 19.5 28 160 2320 640 9280 130 0.77 50/100
25 1″ 25.4 -16 25.4 35 120 1740 480 6960 150 0.92 50/100

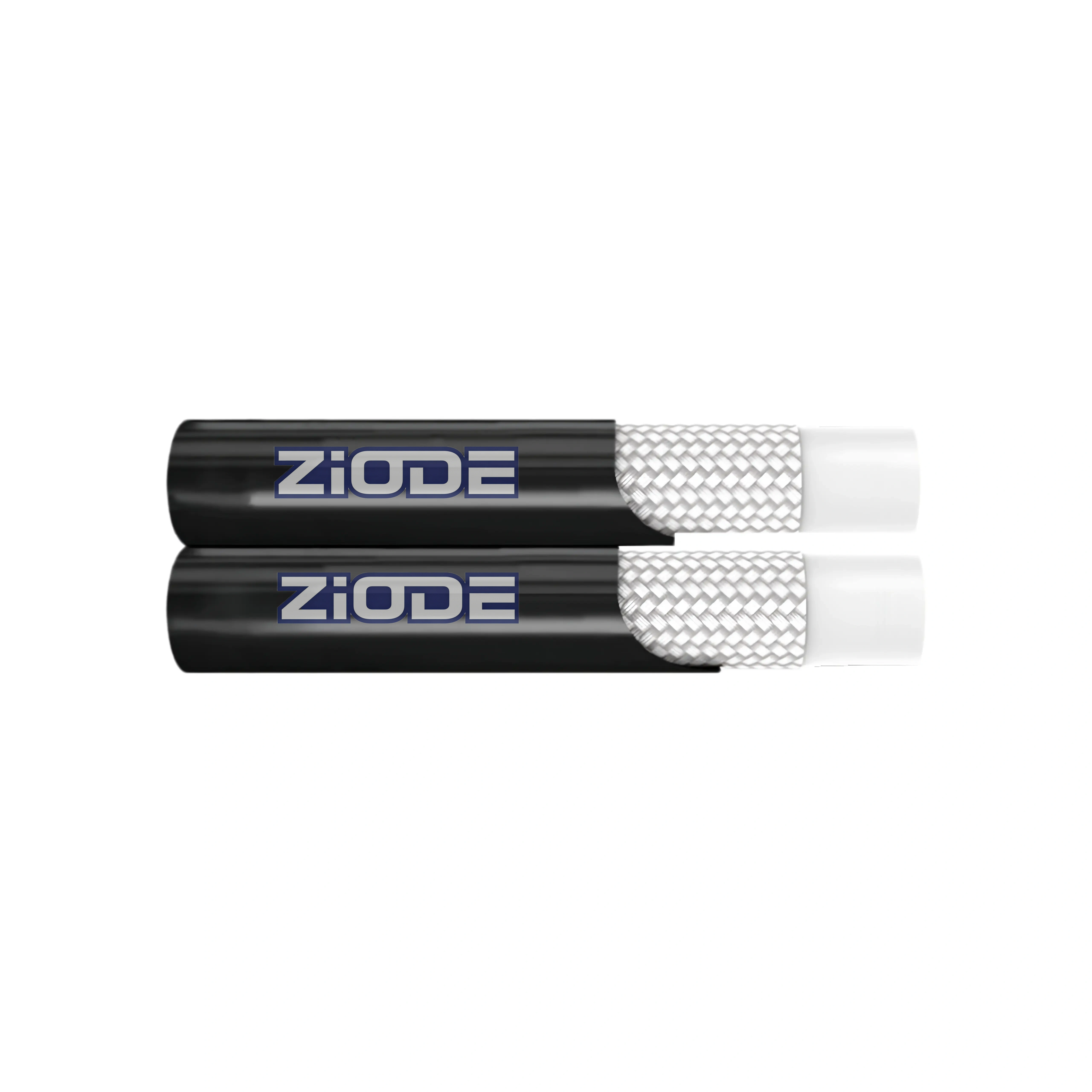

Twin Hose with One or two layers braided aramid fibres
Size Inside Outside Working Pressure Burst Pressure Bend Radius Weight Length
DN inch mm Dash mm mm Bar Psi Bar Psi mm kg/m M
5 3/16” 5 -3 5 10 362 5249 1450 21025 22 0.16 50/100
6 1/4” 6.3 -4 6.3 12.2 362 5249 1450 21025 30 0.22 50/100
8 5/16” 8 -5 8 14.2 350 5075 1400 20300 40 0.28 50/100
10 3/8″ 10 -6 10 16 300 4350 1200 17400 70 0.34 50/100
13 1/2″ 13 -7 13 19.5 250 3625 1000 14500 90 0.48 50/100
16 5/8″ 16.4 -10 16.4 23.1 200 2900 800 11600 130 0.58 50/100
19 3/4″ 19.5 -12 19.5 26.4 162 2349 650 9425 150 0.7 50/100
25 1″ 25.4 -16 25.4 33.3 140 2030 560 8120 190 1.02 50/100

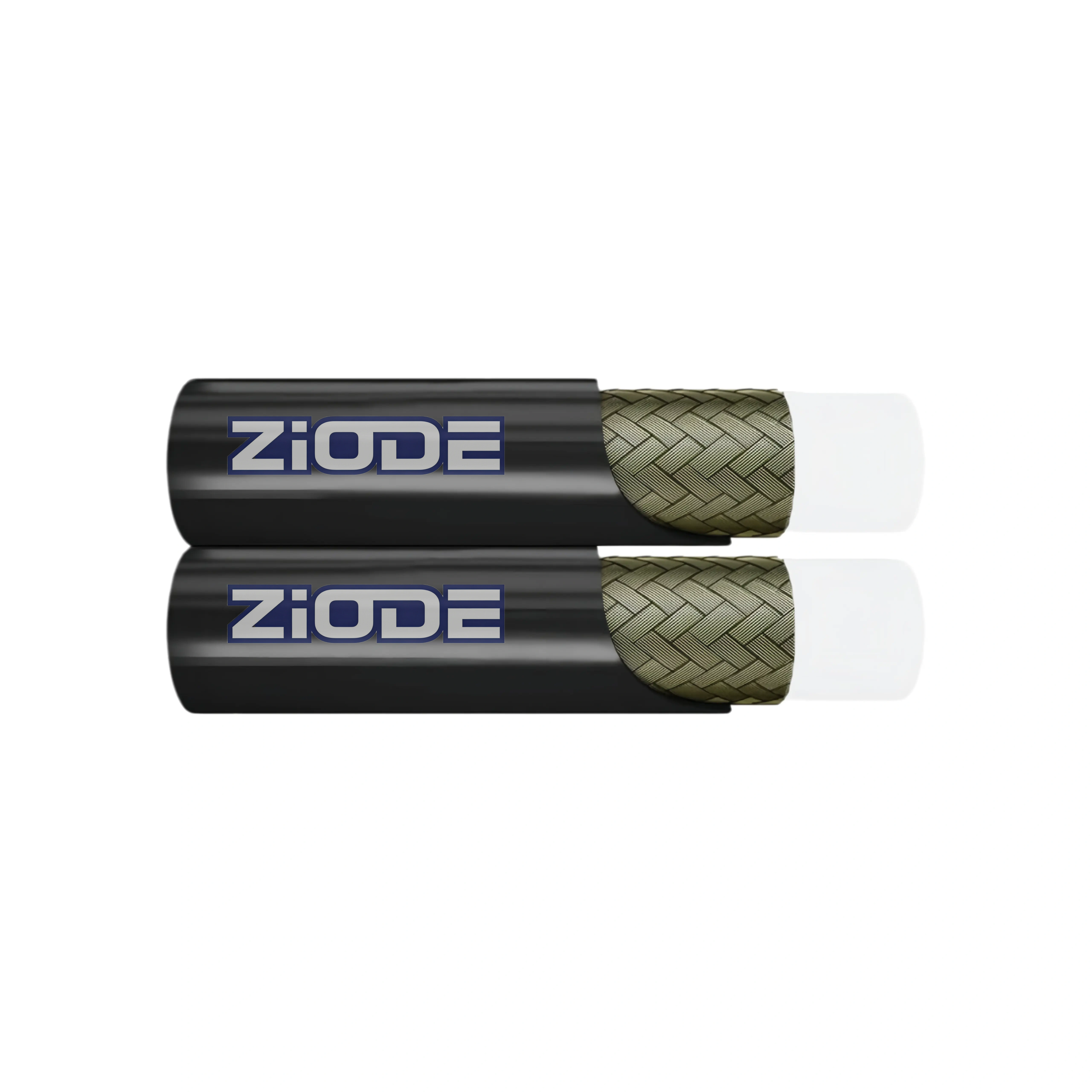

Twin Hose with One or Two Layers Braided Steel Wire
Size Inside Outside Working Pressure Burst Pressure Bend Radius Weight Length
DN inch mm Dash mm mm Bar Psi Bar Psi mm kg/m M
6 1/4” 6.3 -4 6.3 13.2 450 6525 1800 25920 40 0.52 50/100
8 5/16” 8 -5 8 15.2 400 5800 1600 23200 50 0.64 50/100
10 3/8″ 9.7 -6 10 17.5 380 5510 1520 22040 80 0.76 50/100
13 1/2″ 13 -7 13 21.5 300 4350 1200 17400 90 0.96 50/100
16 5/8″ 16.4 -10 16.4 24.5 180 2610 720 10440 100 1.22 50/100
19 3/4″ 19.5 -12 19.5 28 160 2320 640 9280 130 1.54 50/100
25 1″ 25.4 -16 25.4 35 120 1740 480 6960 150 1.84 50/100
