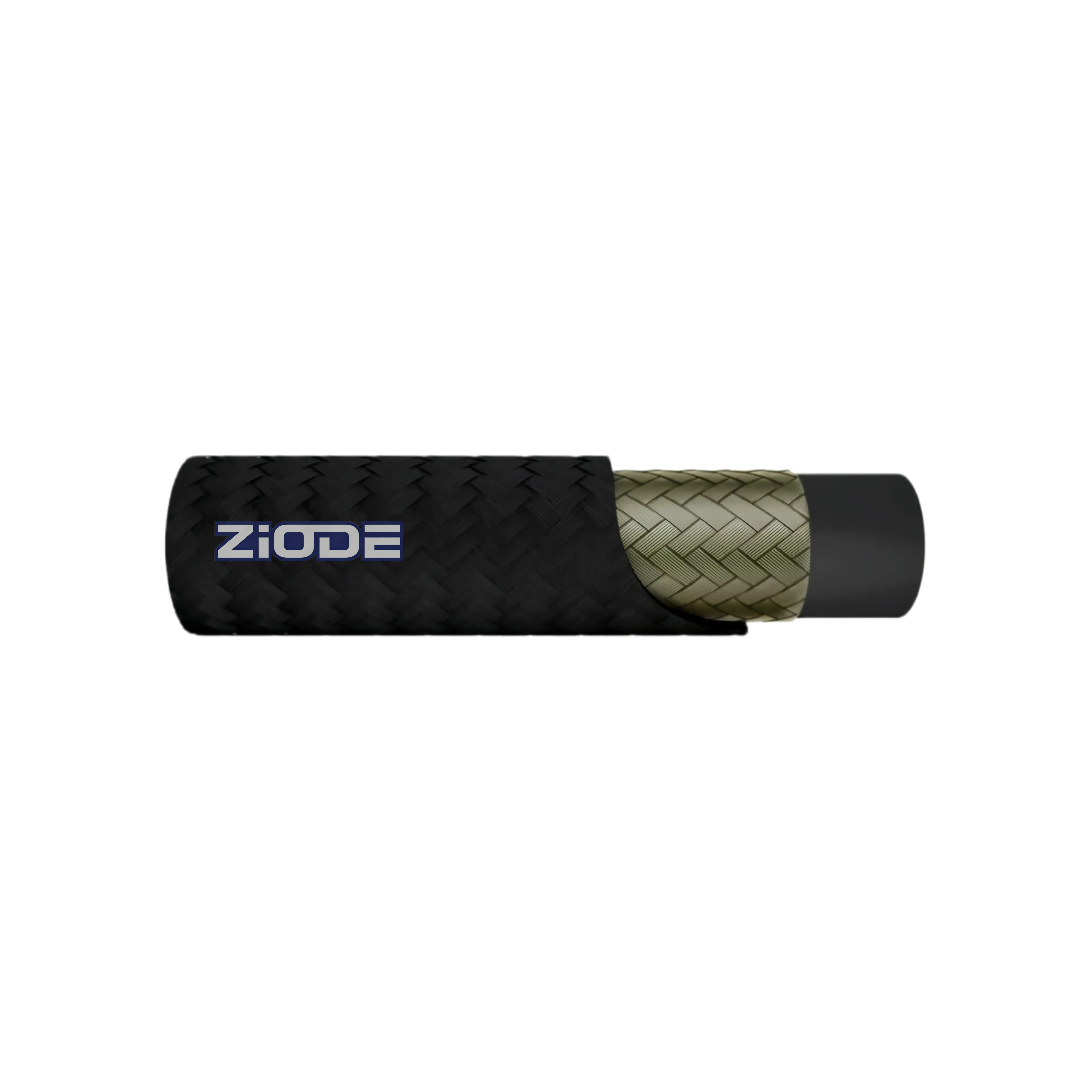

SAE 100R5 Fiber Cover Hydraulic Hose
Unlike standard rubber-covered hoses, R5 features a fiber braided cover, which provides enhanced protection against abrasion, ozone, and external impact, while also improving flexibility. It is widely used for conveying petroleum-based oils, lubricants, hot oil, as well as air and water lines, especially in transportation and heavy-duty vehicle systems.
ZIODE hose complies with SAE 100 R5 standards and is also suitable for applications requiring DOT air brake certification (SAE J1402 Type AII).
| Brand: | ZIODE |
| Internal Hose: | Oil resistant synthetic rubber. |
| Reinforcement: | One braid of high tensile steel wire. |
| Cover: | Textile braid impregnated with oil resistant synthetic rubber compound. |
| Temperature: | -40℃ to +100℃ (-40℉ to +212℉), 120°C max |
| Air brake: | -40° to 200° F |
| Hot oil (sizes -04 to -16): | -40° to 302° F |
| Hot oil (sizes -20 to -32): | -40° to 250 ° F |
| Working Pressure: | 14 – 207 Bar / 200 – 3000 Psi. |
| Safety factor: | 4:1 |
| Standard: | SAE 100 R5 / SAE J1402 / DOT FMVSS 106 |
-
01Textile Braided Cover
Provides superior resistance to ozone, weather, and external impact while enhancing flexibility.
-
02Good Heat Resistance
Suitable for hot oil and high-temperature working environments.
-
03Reliable Pressure Performance
Steel wire braid reinforcement ensures stable operation under medium pressure.
-
04Enhanced Durability
Resistant to oil, abrasion, aging, and environmental exposure.
-
05Lightweight & Flexible
Easier installation compared to traditional rubber-covered hoses.
-
06DOT Compliant Options
Suitable for air brake systems meeting SAE J1402 standards.
-
07Wide Media Compatibility
Handles petroleum oils, lubricants, air, and water lines.
-
Air Brake Systems: Truck and commercial vehicle air brake lines compliant with DOT standards.
-
Automotive Systems: Power steering, fuel systems, turbochargers, and lubrication circuits.
-
Construction Equipment: Excavators, loaders, forklifts, and hydraulic machinery.
-
Agricultural Machinery: Tractors, harvesters, and irrigation equipment.
-
Oil & Gas Equipment: Oilfield machinery and fluid transfer systems.
-
General Hydraulic Systems: Suitable for conveying medium-pressure petroleum-based oils, hot lubricants, air, and water.
 |
 |
 |
 |
 |
 |
 |
 |
 |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | Inside (mm) | Braid (mm) | Outside (mm) | Working Pressure | Burst Pressure | Bend Radius | Weight | Length | ||||||
| DN | inch | mm | Dash | Min | Min | Max | Max | Bar | Psi | Bar | Psi | mm | kg/m | M |
| 5 | 3/16″ | 4.8 | -4 | 4.8 | 5.5 | 12.7 | 13.7 | 207 | 3000 | 828 | 12000 | 76 | 0.23 | 50 |
| 6 | 1/4″ | 6.4 | -5 | 6.4 | 7.2 | 14.3 | 15.3 | 207 | 3000 | 828 | 12000 | 86 | 0.27 | 50 |
| 8 | 5/16″ | 7.9 | -6 | 7.9 | 8.7 | 16.7 | 17.6 | 155 | 2250 | 620 | 9000 | 102 | 0.35 | 50 |
| 11 | 13/32” | 10.3 | -8 | 10.3 | 11.1 | 18.9 | 20 | 138 | 2000 | 552 | 8000 | 117 | 0.4 | 50 |
| 13 | 1/2″ | 12.7 | -10 | 12.7 | 13.7 | 22.8 | 24 | 121 | 1750 | 484 | 7000 | 140 | 0.56 | 50 |
| 16 | 5/8″ | 15.9 | -12 | 15.9 | 17 | 26.8 | 28 | 103 | 1500 | 414 | 6000 | 165 | 0.67 | 50 |
| 22 | 7/8″ | 22.2 | -16 | 22.2 | 23.3 | 30.6 | 32.2 | 55 | 800 | 220 | 3200 | 187 | 0.69 | 50 |
| 29 | 1-1/8″ | 28.6 | -20 | 28.6 | 29.8 | 37.3 | 38.9 | 43 | 625 | 172 | 2500 | 229 | 0.85 | 20 |
| 35 | 1-3/8″ | 34.9 | -24 | 34.9 | 36.1 | 43.7 | 45.2 | 34 | 525 | 138 | 2000 | 267 | 1.06 | 20 |
| 46 | 1-13/16″ | 46 | -32 | 46 | 47.2 | 55.2 | 57.6 | 24 | 350 | 96 | 1400 | 337 | 1.35 | 20 |
| 60 | 2-3/8″ | 60.3 | -40 | 60.3 | 61.9 | 71.8 | 74.2 | 24 | 350 | 96 | 1400 | 610 | 2.96 | 20 |
| 76 | 3” | 76.2 | -48 | 76.2 | 77.8 | 89.3 | 91.7 | 14 | 200 | 56 | 800 | 840 | 4.1 | 20 |
