Stainless Steel PTFE Hoses (Inner Smooth Tube & Inner Corrugated Tube)
SAE 100 R14 is available in two main types:
1. Smooth Bore PTFE Hose (Inner Smooth Tube)
Low friction coefficient for high flow efficiency and minimal pressure drop
Non-stick surface, easy to clean, ideal for food, pharmaceutical, and paint systems
Excellent for continuous flow and high-purity applications

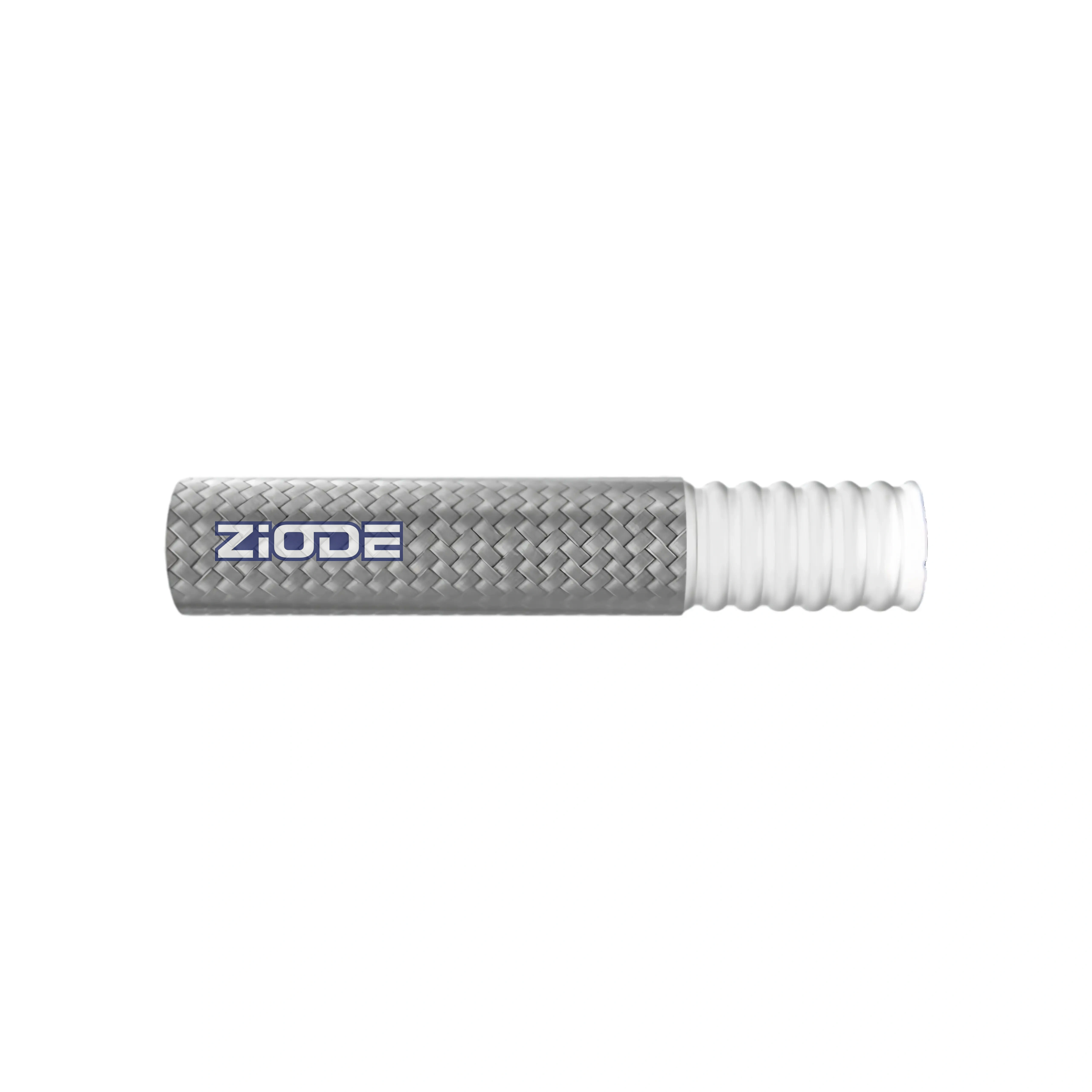

2. Corrugated PTFE Hose (Inner Convoluted Tube)
Superior flexibility with smaller bend radius
Ideal for tight installation spaces and dynamic applications
Enhanced resistance to vibration and repeated movement
Both types are reinforced with high-tensile stainless steel braid (SUS304 or SUS316), ensuring strong pressure containment and long service life under demanding conditions.
With advanced PTFE extrusion and precision braiding technology, ZIODE ensures uniform wall thickness, stable pressure performance, superior cleanliness, and customized solutions (smooth/corrugated, conductive core, fittings assembly) for global industrial applications. We can supply the hose with SUS304 stainless steel braiding where all kinds of couplings can be available. We provide complete 100r14 hose assembly services, crimping the hose with your specified fittings (JIC, NPT, BSP, etc.) for immediate installation.
| Brand: | ZIODE |
| Internal Hose: | Smooth PTFE hose for high and low temperature used, anti-corrosive, non-stick. |
| Reinforcement: | None |
| Cover: | SUS304 stainless steel braided, higher pressure resistance, all kinds of couplings can be available. SUS316 custom acceptable. |
| Temperature: | Constant use -50°C~+210°C, instant use-70°C~+260°C |
| Working Pressure: | |
| √ Inner Smooth Tube type: | 50 – 276 Bar / 725 – 4000 Psi. |
| √ Inner Corrugated Tube type: | 23 – 138 Bar / 345 – 2000 Psi. |
| Standard: | SAE J517 100R14. |
-
01
Exceptional temperature resistance from -54°C to +204°C (peak 260°C)
-
02
Outstanding chemical resistance to acids, solvents, fuels, and corrosive media
-
03
Non-stick PTFE inner tube prevents contamination and buildup
-
04
Stainless steel braid for high strength and pressure resistance
-
05
Available in smooth bore (high flow) and corrugated (high flexibility)
-
06
Long service life compared to traditional rubber hoses
-
07
Optional conductive (anti-static) PTFE core for safety applications
-
Chemical & Pharmaceutical Industry: Transfer of acids, solvents, and corrosive fluids
-
Food & Beverage Processing: High-purity fluid transfer and easy-clean systems
-
Automotive & Engine Systems: Fuel lines, turbo oil lines, brake and transmission systems
-
Industrial Equipment: CNC machines, injection molding, and hydraulic systems
-
Steam & High-Temperature Applications: Steam lines and hot fluid transfer
-
Special Environments: Corrosive media, high temperature zones, and anti-static applications
| SAE 100R14 Stainless Steel PTFE Hoses (Inner Smooth Tube) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
|||||
| Size | Inside | Outside | Working Pressure | Burst Pressure | Bend Radius | Weight | Length | |||||
| DN | inch | mm | Dash | mm | mm | Bar | Psi | Bar | Psi | mm | kg/m | M |
| 3 | 1/8″ | 3.2 | -3 | 3.2 | 6.2 | 276 | 4000 | 1104 | 16000 | 35 | 0.07 | ≥50 |
| 5 | 3/16” | 4.8 | -4 | 4.8 | 7.8 | 276 | 4000 | 1104 | 16000 | 51 | 0.09 | ≥50 |
| 6 | 1/4” | 6.4 | -5 | 6.4 | 9.1 | 241 | 3500 | 964 | 14000 | 76 | 0.09 | ≥50 |
| 8 | 5/16” | 8 | -6 | 8 | 11.3 | 207 | 3000 | 828 | 12000 | 102 | 0.13 | ≥50 |
| 10 | 3/8″ | 9.5 | -7 | 9.5 | 12.6 | 183 | 2600 | 732 | 10400 | 127 | 0.15 | ≥50 |
| 11 | 13/32” | 10.3 | -8 | 10.3 | 13.2 | 161 | 2300 | 644 | 9200 | 140 | 0.2 | ≥50 |
| 13 | 1/2″ | 12.7 | -10 | 12.7 | 16.2 | 138 | 2000 | 552 | 8000 | 165 | 0.27 | ≥50 |
| 16 | 5/8″ | 16.2 | -12 | 16.2 | 19.3 | 114 | 1600 | 456 | 6400 | 203 | 0.33 | ≥50 |
| 19 | 3/4″ | 19 | -14 | 19 | 22.5 | 69 | 1000 | 276 | 4000 | 305 | 0.52 | ≥30 |
| 22 | 7/8″ | 22.2 | -16 | 22.2 | 25.8 | 69 | 1000 | 276 | 4000 | 305 | 0.54 | ≥20 |
| 25 | 1″ | 25.4 | -18 | 25.4 | 29.5 | 50 | 725 | 200 | 2900 | 305 | 0.58 | ≥20 |
| SAE 100R14 Stainless Steel PTFE Hoses (Inner Smooth Tube) | ||||||||||||
|
|
|
|
|
|
|
|
|||||
| Size | Inside | Outside | Working Pressure | Burst Pressure | Bend Radius | Weight | Length | |||||
| DN | inch | mm | Dash | mm | mm | Bar | Psi | Bar | Psi | mm | kg/m | M |
| 6 | 1/4″ | 6.4 | -5 | 6.4 | 10.5 | 138 | 2000 | 552 | 8000 | 20 | 0.14 | ≥50 |
| 8 | 5/16″ | 8 | -6 | 8 | 12.2 | 138 | 2000 | 552 | 8000 | 20 | 0.17 | ≥50 |
| 10 | 3/8″ | 9.5 | -7 | 9.5 | 15.5 | 138 | 2000 | 552 | 8000 | 20 | 0.22 | ≥50 |
| 13 | 1/2″ | 12.7 | -10 | 12.7 | 18.5 | 103 | 1500 | 412 | 6000 | 25 | 0.28 | ≥50 |
| 16 | 5/8″ | 16.2 | -12 | 16.2 | 22.5 | 83 | 1200 | 332 | 4800 | 51 | 0.33 | ≥50 |
| 19 | 3/4″ | 19 | -14 | 19 | 25.5 | 69 | 1000 | 276 | 4000 | 64 | 0.4 | ≥20 |
| 22 | 7/8″ | 22.2 | -16 | 22.2 | 28.5 | 46 | 670 | 184 | 2680 | 80 | 0.55 | ≥20 |
| 25 | 1″ | 25.4 | -18 | 25.4 | 35.5 | 46 | 670 | 184 | 2680 | 89 | 0.55 | ≥20 |
| 32 | 1-1/4″ | 31.8 | -22 | 31.8 | 42.5 | 34 | 525 | 136 | 2100 | 127 | 0.69 | ≥20 |
| 39 | 1-1/2″ | 38.1 | -24 | 38.1 | 51.5 | 30 | 450 | 120 | 1800 | 152 | 0.89 | ≥20 |
| 51 | 2″ | 50.8 | -32 | 50.8 | 60.5 | 23 | 345 | 92 | 1380 | 200 | 1.24 | ≥20 |
