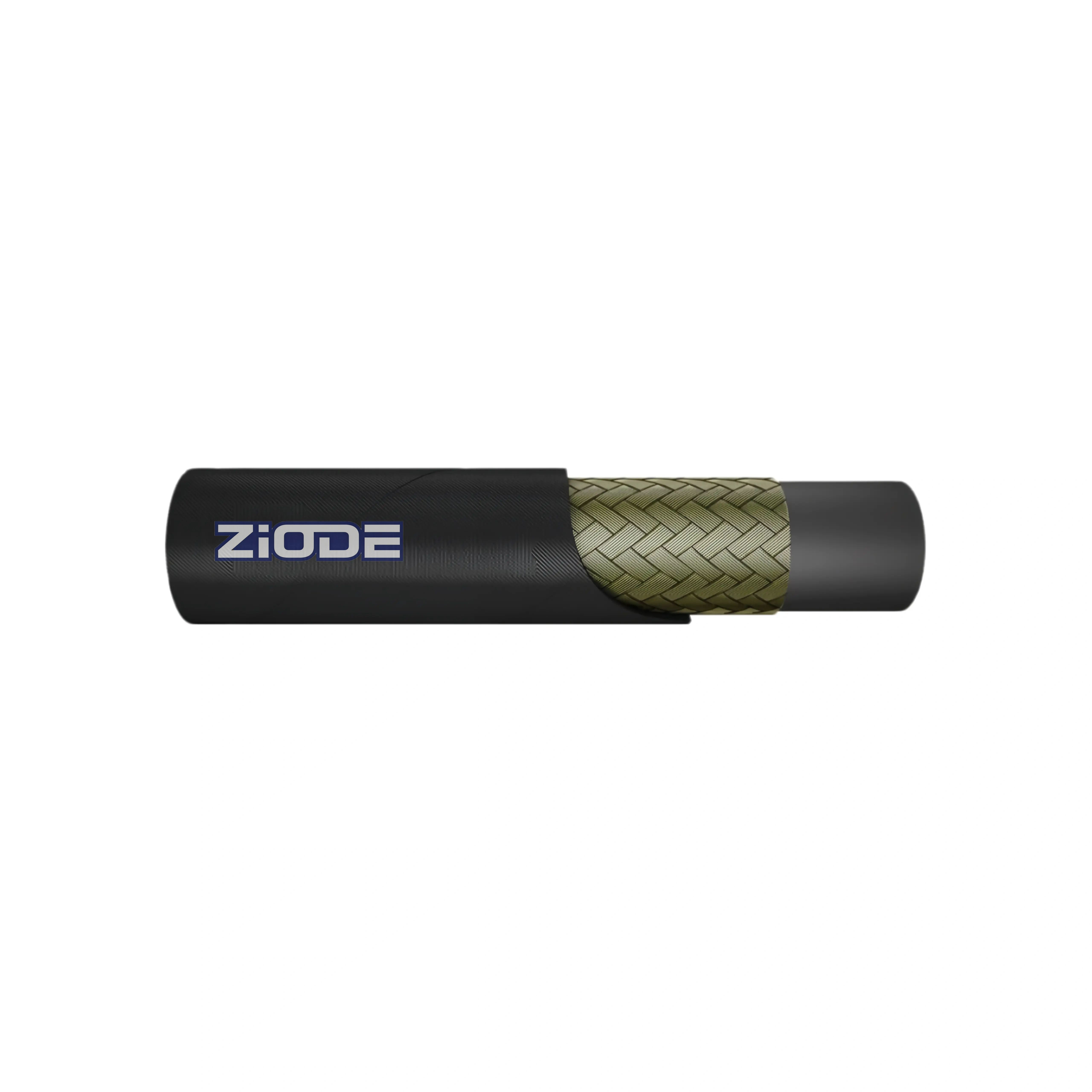

Steel Wire Braid Reinforced Hydraulic Hose
The hose features a black, oil-resistant nitrile rubber inner tube suitable for petroleum, synthetic, or water-based hydraulic fluids. One or two layers of high-tensile steel wire braiding provide superior pressure resistance up to 3,045 PSI (21 MPa), ensuring reliable performance under demanding conditions. The MSHA-certified, vulcanized synthetic rubber cover delivers outstanding resistance to abrasion, weather, ozone, aging, and corrosion, extending service life even in harsh industrial environments.
ZIODE’s SAE 100R17 hoses combine durability, flexibility, and safety, making them a preferred choice for industries requiring consistent, high-pressure hydraulic performance.
| Brand: | ZIODE |
| Internal Hose: | Oil resistant synthetic rubber. |
| Reinforcement: | One high tensile steel wire braid. |
| Cover: | Oil and weather resistant synthetic rubber, Wrapped/Smooth cover. |
| Temperature: | -40℃ to +100℃, intermittent 120°C (-40℉ to +212℉) |
| Working Pressure: | 210 – 225 Bar / 3000 – 3250 Psi. |
| Standard: | SAE 100 R17 |
-
01High-Strength Reinforcement
Single braid or double braid of high-tensile steel wire.
-
02MSHA-Certified Outer Cover
Durable synthetic rubber protects against abrasion, ozone, aging, weather, and corrosion.
-
03Compact & Flexible
Small bend radius (2–6 inches) ideal for tight installations.
-
04Wide Diameter Range
3/16" to 1" (5 mm – 25 mm), suitable for various hydraulic applications.
-
05High Pressure & Safety Ratings
Working pressure 21 MPa (3,000 psi), proof pressure 42 MPa, minimum burst pressure 84 MPa.
-
06Durable & Reliable
ZIODE quality ensures long service life, operational consistency, and reduced maintenance
-
Agricultural machinery hydraulic lines
-
Construction equipment (excavators, loaders, etc.)
-
Material handling equipment and forklifts
-
Mobile hydraulic systems in industrial machinery
-
High-demand general industrial hydraulic systems
-
Petroleum, synthetic, and water-based fluid transfer
| SAE 100 R17 Steel Wire Braid Reinforced Hydraulic Hose | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
||||||
| Size | Inside (mm) | Braid | Outside | Working Pressure | Burst Pressure | Bend Radius | Weight | Length | ||||||
| DN | inch | mm | Dash | Min | Max | mm | mm | Bar | Psi | Bar | Psi | mm | kg/m | M |
| 6 | 1/4″ | 6.4 | -4 | 6.2 | 7 | 12.3 | 12 | 225 | 3250 | 900 | 13000 | 50 | 0.17 | 50/100 |
| 8 | 5/16″ | 7.9 | -5 | 7.7 | 8.5 | 13.3 | 13.3 | 215 | 3120 | 860 | 12500 | 55 | 0.19 | 50/100 |
| 10 | 3/8″ | 9.5 | -6 | 9.3 | 10.1 | 15.9 | 15.4 | 210 | 3000 | 840 | 12000 | 65 | 0.26 | 50/100 |
| 13 | 1/2″ | 12.7 | -8 | 12.3 | 13.5 | 19 | 19.2 | 210 | 3000 | 840 | 12000 | 90 | 0.36 | 50/100 |
| 16 | 5/8″ | 15.9 | -10 | 15.5 | 16.7 | 22.6 | 25.9 | 210 | 3000 | 840 | 12000 | 100 | 0.64 | 50 |
| 19 | 3/4″ | 19 | -12 | 18.6 | 19.8 | 26.3 | 30.3 | 210 | 3000 | 840 | 12000 | 120 | 0.79 | 50 |
| 25 | 1″ | 25.4 | -16 | 25 | 26.4 | 34 | 38.6 | 210 | 3000 | 840 | 12000 | 150 | 1.4 | 50 |
