Steel Wire Spiral Hydraulic Hose | High Pressure Hydraulic Hose

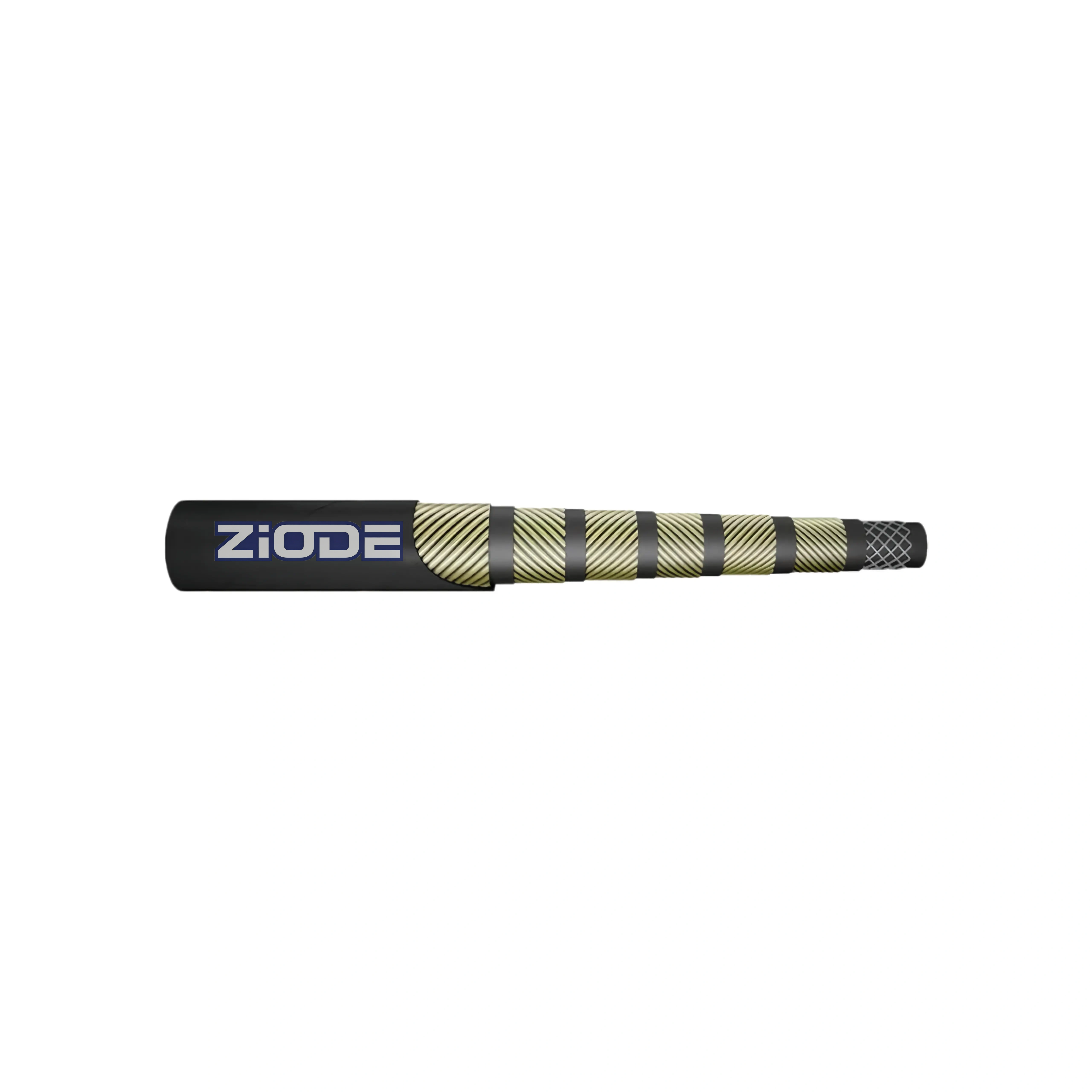

The hose is constructed with an oil-resistant synthetic rubber inner tube (NBR), multiple layers of high-tensile spiral steel wire reinforcement, and a high-performance outer rubber cover designed to resist abrasion, weather, ozone, and corrosion. Depending on size, it is available in four or six spiral wire constructions, ensuring stable performance under continuous ultra high-pressure operation.
ZIODE SAE 100 R15 hoses are MASHA certified with advanced spiral technology and strict quality control to ensure consistent pressure performance, excellent impulse resistance, and reliable operation in ultra high-pressure applications worldwide.
| Brand: | ZIODE |
| Internal Hose: | Oil resistant synthetic rubber. |
| Reinforcement: | Four or six high tensile steel wire spiral layers. |
| Cover: | Abrasion, ozone, and weather resistant synthetic rubber. |
| Temperature: | -40℃ to +100℃, intermittent 120°C (-40℉ to +212℉) |
| Working Pressure: | 420 Bar / 6090 Psi. |
| Standard: | SAE J517 100R15. |
-
01
Multiple spiral steel wire layers for ultra high-pressure performance
-
02
Outstanding impulse resistance for continuous and dynamic operations
-
03
High resistance to abrasion, oil, weather, ozone, and corrosion
-
04
Suitable for petroleum-based and water-based hydraulic fluids
-
05
Long service life under extreme working conditions
-
Ultra High-Pressure Hydraulic Systems: Continuous duty hydraulic lines and hydrostatic transmissions
-
Construction & Mobile Equipment: Excavators, loaders, harvesting and logging machinery
-
Industrial Machinery: Injection molding machines, heavy-duty presses
-
Mining & Oilfield Equipment: Underground mining systems and oilfield hydraulic lines
-
Severe Working Environments: Applications with high pressure, wear, and harsh operating conditions
| SAE 100R15 Steel Wire Spiral Hydraulic Hose | High Pressure Hydraulic Hose | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
||||||
| Size | Inside (mm) | Braid | Outside | Working Pressure | Burst Pressure | Bend Radius | Weight | Length | ||||||
| DN | inch | mm | Dash | Min | Max | mm | mm | Bar | Psi | Bar | Psi | mm | kg/m | M |
| 10 | 3/8″ | 9.5 | -6 | 9.3 | 10.1 | 20.3 | 20.1 | 420 | 6090 | 1680 | 24360 | 75 | 0.67 | 40 |
| 13 | 1/2″ | 12.7 | -8 | 12.3 | 13.5 | 24 | 23 | 420 | 6090 | 1680 | 24360 | 90 | 0.75 | 40 |
| 19 | 3/4″ | 19 | -12 | 18.6 | 19.8 | 32.9 | 31.4 | 420 | 6090 | 1680 | 24360 | 210 | 1.47 | 40 |
| 25 | 1″ | 25.4 | -16 | 25 | 26.4 | 38.9 | 38.2 | 420 | 6090 | 1680 | 24360 | 250 | 2 | 40 |
| 32 | 1-1/4″ | 31.8 | -20 | 31.4 | 33 | 48.4 | 49.3 | 420 | 6090 | 1680 | 24360 | 445 | 3.47 | 40 |
| 38 | 1-1/2″ | 38.1 | -24 | 37.7 | 39.3 | 56.3 | 56.5 | 420 | 6090 | 1680 | 24360 | 530 | 4.55 | 40 |
| 51 | 2″ | 50.8 | -32 | 50.4 | 52 | 72.4 | 71 | 420 | 6090 | 1680 | 24360 | 680 | 6.5 | 40 |
